Silver Melting Furnace
- Product Introduction -
Summary

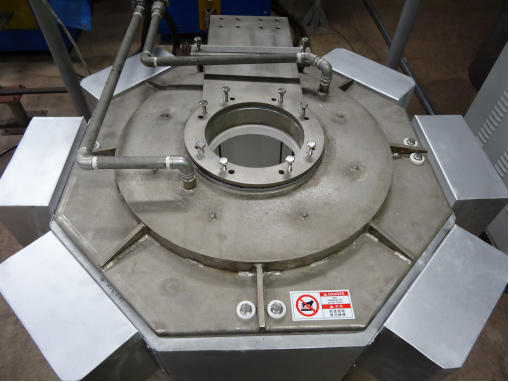

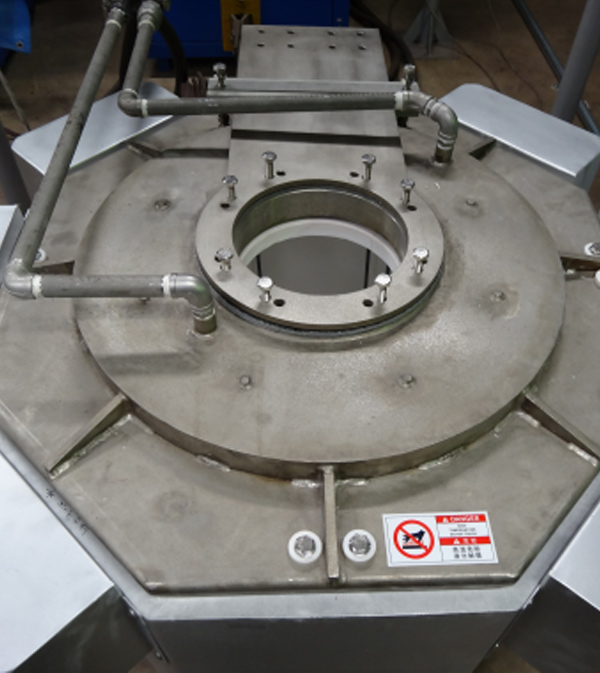

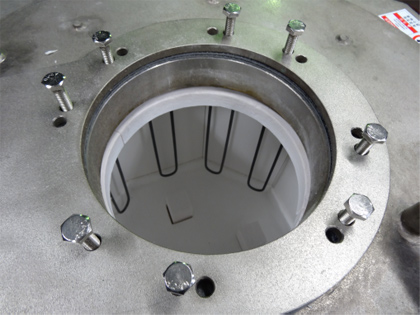

The Furnace frame is Eight Limbaloney, a gas-tight box type steel plate welded structure, large volume 475w＊475l＊400h, stowage capacity can reach 325 x345h Φ,treated product weight (treated material + props material) reaches to 10 kg. The insulation materials adopt imported ceramic fiber, which is high temperature resistance, good thermal stability, low thermal conductivity, small specific heat. In addition, we also under laid a particular type refractory brick at the hearth, which has the characteristics of strong strong slag resistance, high thermal shock resistance, good wear ability, no crack under the high temperature, etc. The side wall vertical configure procedure, in general environment the 1750 ℃ U type silicon molybdenum rods will heat the temperature up to 1300 ℃. The required common temperature is 1200 ℃. The total power is 12 kw/h. Control panel adopts intelligent temperature control instrument and the continuous phase control thyristor (intelligent thyristor module) to automatically adjust the temperature. The temperature control accuracy is±1 ℃. PID continuous control program to automatically adjust the temperature measurement.
- Contact Us -
|
Tel:+86-512-63496667-162 Fax:+86-512-63496217 QQ:3262838371 Email:alcera@alcera.cn Wechat:alcera Website:www.alcera.cn Postcode:215200 Add: No.8 Yexin Rd, Wujiang Economic and Technology Development Zone, Jungian, PRC |
ALCERA (SUZHOU) CO., LTD
purchase：Silver Melting Furnace
- *Name：
- *Phone：
- company name：
- *Email：
- *Intent to purchase：
-
*Verification code：
Related Products
- High-Temp Refractory Brick
- Regular size
230 * 114 * 65
230 * 114 * 65/55
Accept Customize special size and shape
- Plate & Pillar
- Pillar
Used for supporting the Setter Plates and products
Excellent thermal shock resistance, anti-bending performance, excellent resistance to creep etc, durable in use
good flatness at each sides, high purity, no iron spots at the surface, no pollution to the sintering products
- High-temp Setter Plates
- Used for high temperature sintering
Long-term working temperature 1700 ℃
Good high temperature load softening performance
Good thermal shock resistance, no crack
high purity raw materials, no low-melting-point volatile under high temperature
