ALCERA CERAMIC FIBER BOARD
The highest working-temperature depends on the using conditions. If you have any questions, please contact with ALCERA(SUZHOU) CO., LTD.
- Product Introduction -
Characteristics:
Made up of various refractory fiber, inorganic and small amounts of organic binder according to different mixing ratio. The working temperature from 1000 ℃ to 1800 ℃.
The highest working-temperature depends on the using conditions. If you have any questions, please contact with ALCERA(SUZHOU) CO., LTD.
- Product Features -
High temperature stability, thermal shock, resistance to erosion.
low thermal capacity, low thermal conductivity.
The hardness and its own internal high adhesive strength make it could be processed and machined.
It can be directly contact with flame, and easy to install and use.
- Application Area -

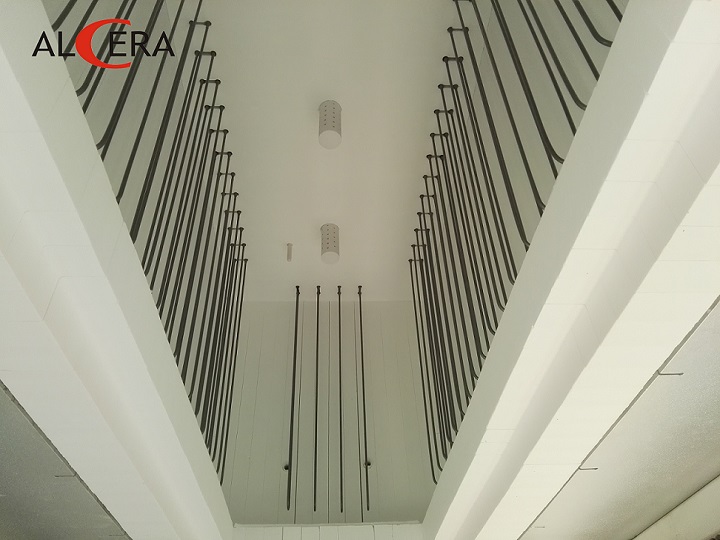

Ceramic industry: kiln lining, kiln car
Glass industry,
Pipe insulation, thermal resistance materials
| BOARD DATA SHEET | ||||||
|
|
1260BOARD | 1260BOARD | 1400BOARD | 1500BOARD | 1500BOARD | |
| Working Temperature | 1100 | 1100 | 1300 | 1400 | 1400 | |
| Density kg/m³ | 250 | 300 | 300 | 300 | 400 | |
| Linear shrinkage (%)*8h | 2.5 | 1.8 | 1.6 | 0.6 | 0.5 | |
| (1100℃) | (1100℃) | (1200℃) | (1400℃) | (1400℃) | ||
| Thermal conductivity | at 400℃ | 0.13 | 0.12 |
|
|
|
| (w/m?k) | at 600℃ | 0.17 | 0.16 | 0.12 | 0.12 | 0.11 |
|
|
at 800℃ | 0.24 | 0.23 | 0.15 | 0.17 | 0.15 |
|
|
at 1000℃ |
|
|
0.25 | 0.22 | 0.21 |
| Chemical | AL2O3 | 43 | 43 | 45 | 62 | 62 |
| component(%) | AL2O3+SiO2 | 98 | 98 | 98 | 98 | 98 |
|
|
||||||
|
|
1600BOARD | 1700MBOARD | 1800MBOARD | 1900MBOARD |
|
|
| Working Temperature | 1500 | 1600 | 1700 | 1750 | ||
| Density kg/m³ | 400 | 350 | 400 | 700 | ||
| Linear shrinkage (%)*8h | 0.1 | 0.2 | 0.1 | 0.3 | ||
| (1500℃) | (1600℃) | (1700℃) | (1750℃) | |||
| Thermal conductivity | at 600℃ | 0.14 | 0.12 | 0.12 |
|
|
| (w/m?k) | at 800℃ | 0.17 | 0.15 | 0.16 | 0.11 | |
|
|
at 1000℃ | 0.24 | 0.18 | 0.19 | 0.14 | |
|
|
at 1200℃ |
|
|
|
0.17 | |
| Chemical | AL2O3 | 64 | 75 | 75 | 87 | |
| component(%) | AL2O3+SiO2 | 98 | 99 | 99.5 | 99.5 | |
| ALCERA CERAMIC FIBER BOARD | |||||
| Temperature | Density(kg/m³) | W*L mm | Thickness mm | Package | Remark |
| 1260 | 250 300 350 | 1200*1000 | 25 30 40 50 60 70 80 | Pallet+Carton | customize Non-standard products |
| 1000*600 | 25 30 40 50 60 70 80 |
|
|||
| 1400 | 250 300 350 | 1200*1000 | 25 30 40 50 60 70 80 |
|
|
| 1000*600 | 25 30 40 50 60 70 80 |
|
|||
| 1500 | 300 350 400 | 1000*600 | 25 40 50 60 70 80 | Pallet+Carton |
|
| 1600 | 350 400 | 1000*600 | 25 40 50 60 70 80 |
|
|
| 1700M | 350 | 1000*600 | 25 40 50 60 70 80 | Wooden Carton |
|
| 1800M | 400 | 1000*600 | 25 40 50 60 70 80 |
|
|
| 1900M | 700 | 1000*600 | 25 40 50 60 70 80 |
|
|
- Contact Us -
|
Tel:+86-512-63496667-162 Fax:+86-512-63496217 QQ:3262838371 Email:alcera@alcera.cn Wechat:alcera Website:www.alcera.cn Postcode:215200 Add: No.8 Yexin Rd, Wujiang Economic and Technology Development Zone, Jungian, PRC |
ALCERA (SUZHOU) CO., LTD
purchase：ALCERA CERAMIC FIBER BOARD
- *Name：
- *Phone：
- company name：
- *Email：
- *Intent to purchase：
-
*Verification code：
Related Products
- High-Temp Refractory Brick
- Regular size
230 * 114 * 65
230 * 114 * 65/55
Accept Customize special size and shape
- Plate & Pillar
- Pillar
Used for supporting the Setter Plates and products
Excellent thermal shock resistance, anti-bending performance, excellent resistance to creep etc, durable in use
good flatness at each sides, high purity, no iron spots at the surface, no pollution to the sintering products
- High-temp Setter Plates
- Used for high temperature sintering
Long-term working temperature 1700 ℃
Good high temperature load softening performance
Good thermal shock resistance, no crack
high purity raw materials, no low-melting-point volatile under high temperature
