Characteristics:

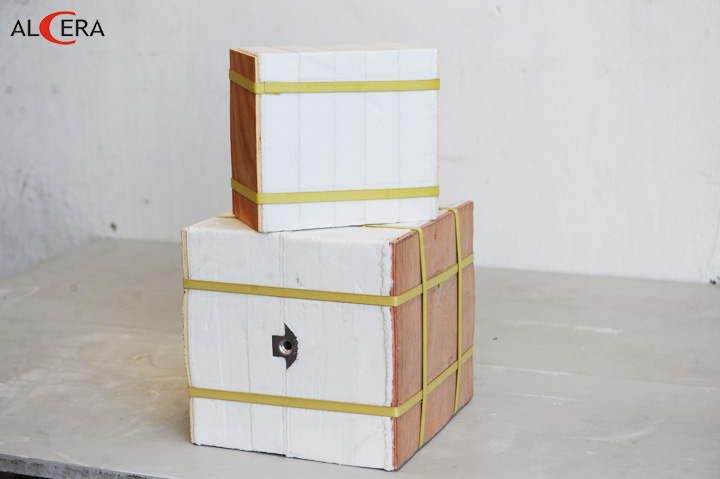

Z type Module
Using high quality spun ceramic fiber blanket, fold and compress to a certain density.Anchor system includes: four bars, bars buried within the blanket fold, a vertical pole point, the point through the blanket discount and components on the back of the one perpendicular to the crease of the carpet,connect with the long slide position in the slot.When installation, components are further pressed. Due to the elastic fiber, after removing the banding, the module will rebound, squeeze each other tight.

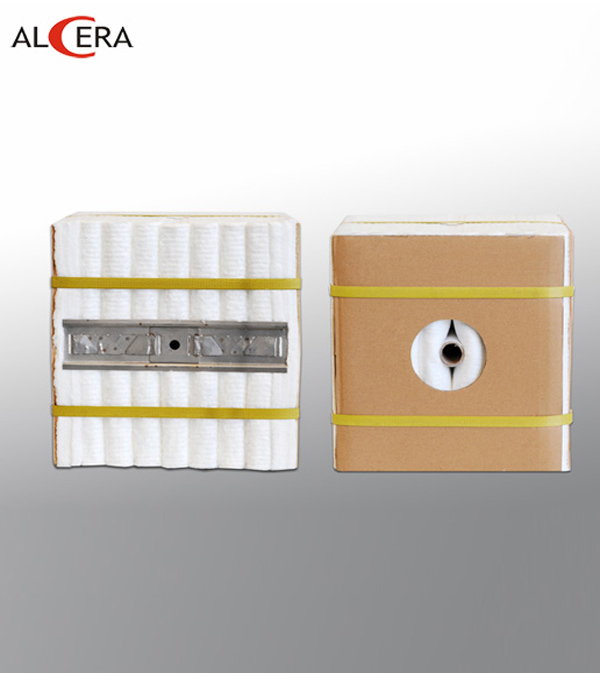

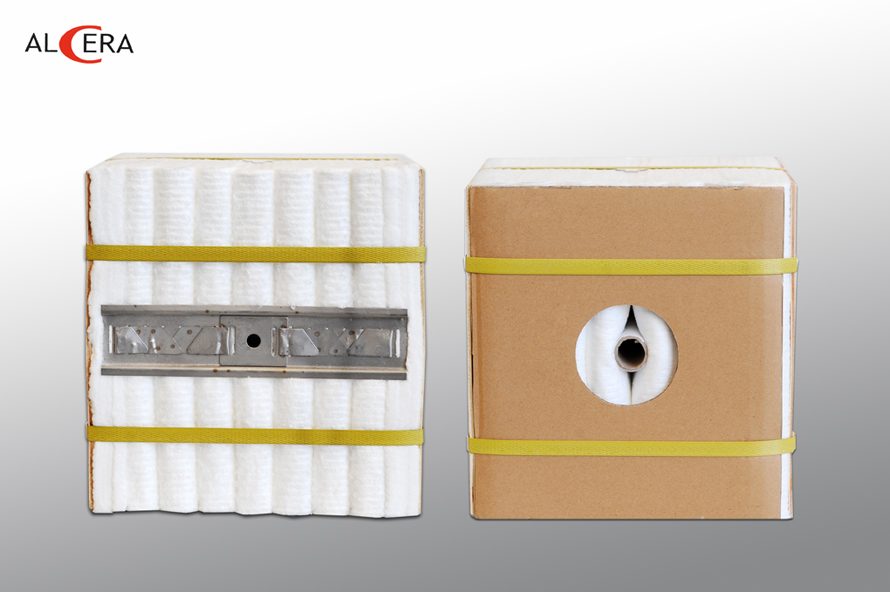

AC-M & AC-S Type Module
AC - M and AC-S Module, using a heat-resisting steel through the folding layer connecting to the heat-resistant steel plate flat on the back of module, the heat resistant steel plate can be directly fixed on the furnace shell.All the module are designed to certain size. Fixed on the furnace shell, after removing the binder, the module will expanse and squeeze each other to form a seamless whole heat insulation lining.All the metal parts in the lining are fixed on the cold face, not withstand high temperature.
1600S Module
ALCERA 1600S Module is made by 1600S board, which raw material is 1600 MAFTEC blanket, the working temperature reaches to 1600°. High purity, low thermal conductivity, low shrinkage, resistant to corrosion.

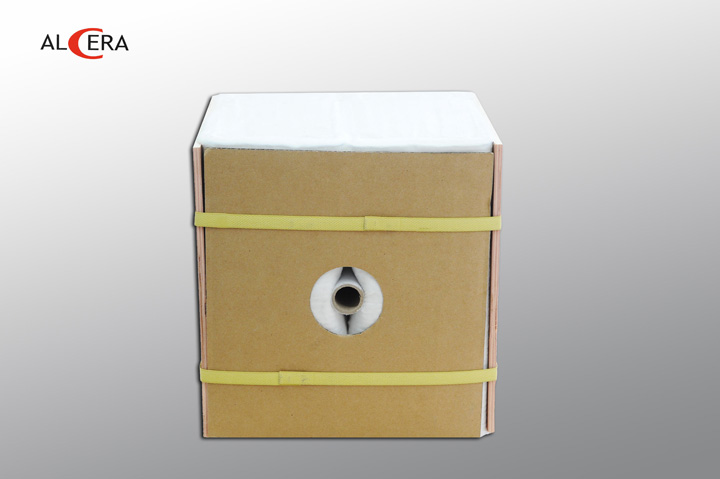

The anchor at the back side of the module can be directly connect to the furnace shell, easy to install.
The folded blanket will squeeze each other tight after removing the banding without any gap.
Light weight, low thermal conductivity, excellent energy saving effect.
No need drying and maintaining, can be put into use immediately after installed

petrochemical industry: heating furnace, reforming furnace, high temperature decomposition pipe, etc
steel industry: ladle cover, well type soaking furnace cover, furnace, annealing furnace plate, etc.
ceramics industry:Tunnel and clearance kiln for firing tableware, sanitary ware and brick, etc.

Anchor: Anchor metal parts supplied with modules, common specification SUS304 and SUS310.
Common Specification and varieties: 300 x 300 squares size, the thickness 100-350 - mm, made by 25 mm blanket.

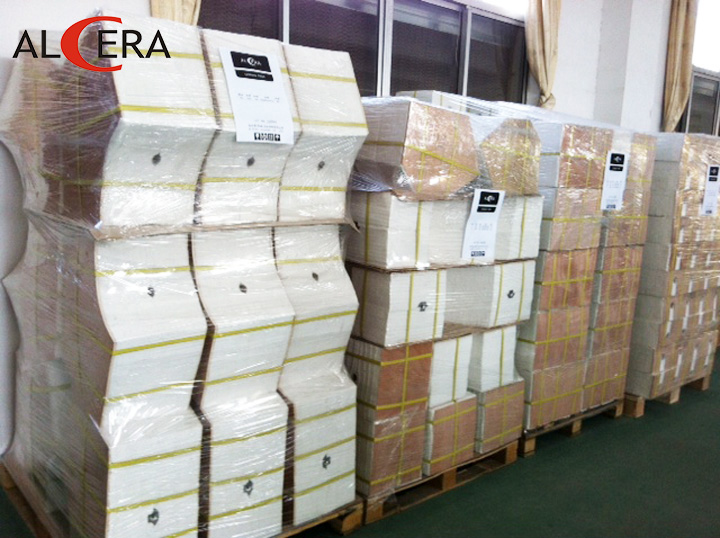

Packaging: Packed on pallet with wrapping film
Installation: More than 10 years’ kiln installation experience, very professional installation team. Our team are greatly praised by our clients, we got good reputation in the industry.
We can also guide and supervise your installation at site.
