High Temperature Box Furnace
- Product Introduction -
Summary
SX series high temperature box furnace uses U Type silicon molybdenum rods as heating element, with air inlet and vent setting, can automatically cut off the air intake at a certain temperature. Temperature measured by B Type double platinum rhodium thermocouple, automatically control the temperature by Temperature Controller. Temperature control precision (±1℃) It is a new type electric furnace, independent developed by our company with high performance, high energy saving. The insulation material are imported energy-saving ceramic fiber material. With double structure, it will keep the out shell temperature down to room temperature, and distribute the inner temperature uniformly. Comprehensive performance is very high in the domestic leading level, with the advantages of high working temperature, high precision of temperature control, simple operation, convenient to maintenance, etc. Widely used in electronic ceramics, powder metallurgy, machinery, light industry, commodity inspection, institutions of universities and scientific research departments, etc.
- Technical Parameter -
| Product Model | SX-17-222820 | SX-18-222820 | SX-19-222820 | ||
| Highest working temperature | 1650℃ | 1700℃; | 1750℃ | ||
| Rated Voltage | 380V±10%， 50Hz±5% | ||||
| Rated Power | 9KW | ||||
| Temp. Uniformity | ±5℃（1600℃） | ||||
| Temp.Precision | ±1℃ | ||||
| Insulation Material | Ceramic fiber raw material Imported from Japan | ||||
| Temp. Measurement | B type thermocouple | ||||
| Heating Element | MoSi2 | ||||
| Safety Device | over current, over temperature protection | ||||
| Control Method | SCR control / PID temperature control | ||||
| Heating Mode | Programmable control (15 step program) | ||||
| Heating Rate | 0-1600℃/2hr | ||||
| Service Environment | Atmosphere | ||||
| Effective Dimension | 300*250*250 | 300*250*250 | 300*250*250 | ||
| L×W×H（mm) | |||||
| Equipment Dimension | 650*750*1154 | 650*750*1154 | 650*750*1154 | ||
| L×W×H（mm) | |||||
| Weight | About 230kg | About 230kg | About 260kg | ||

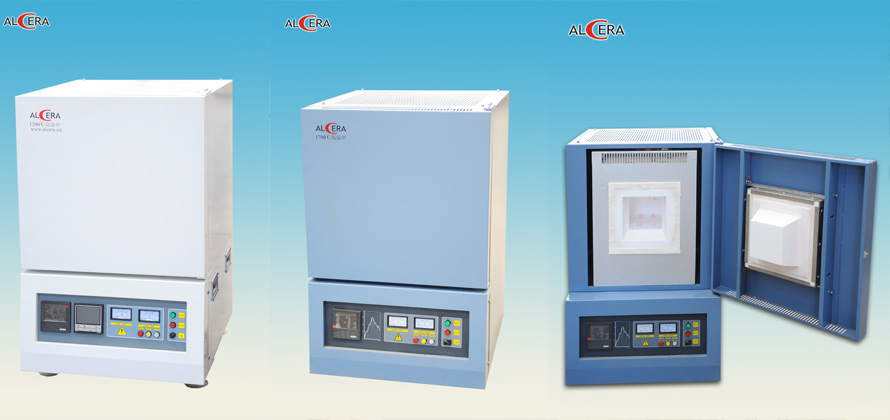

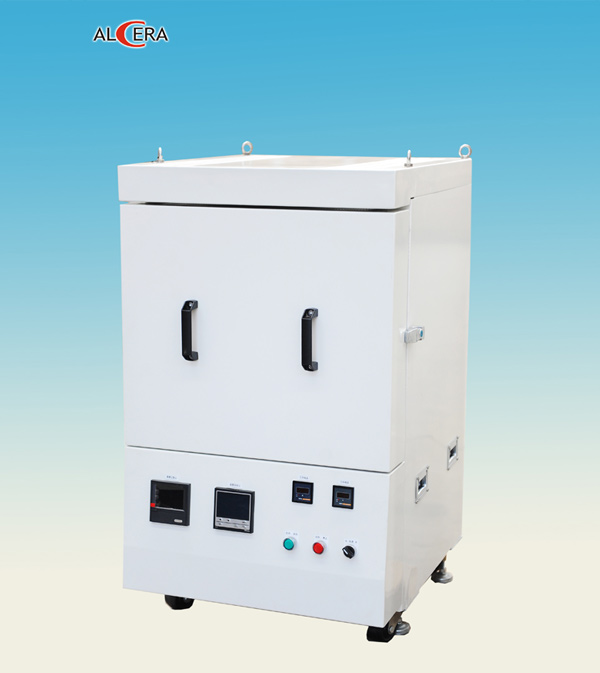

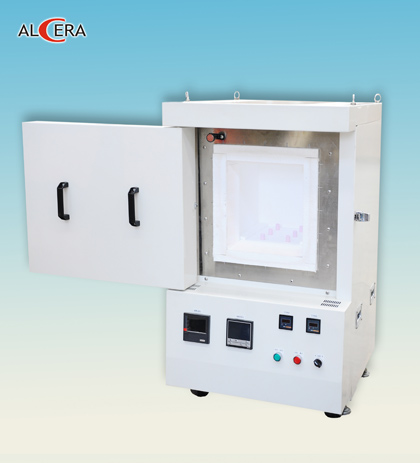

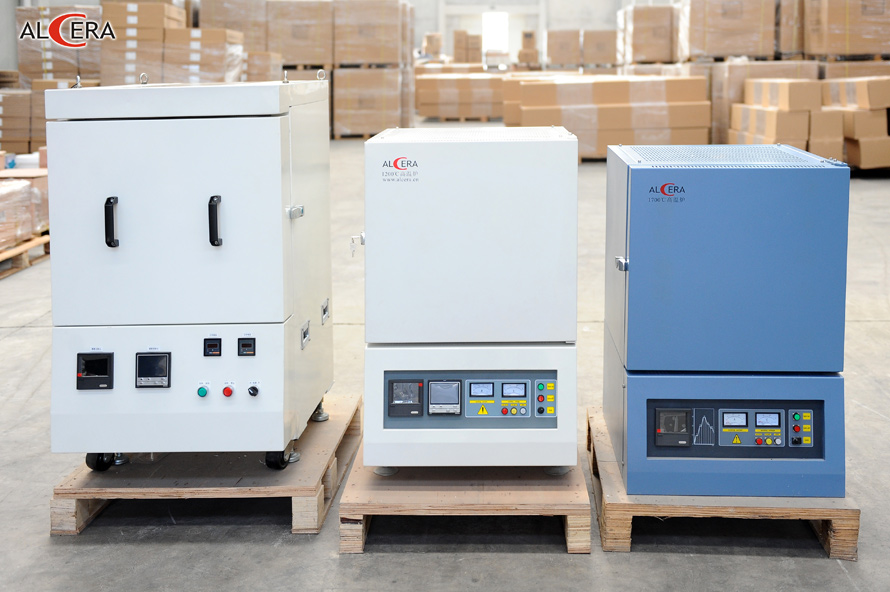

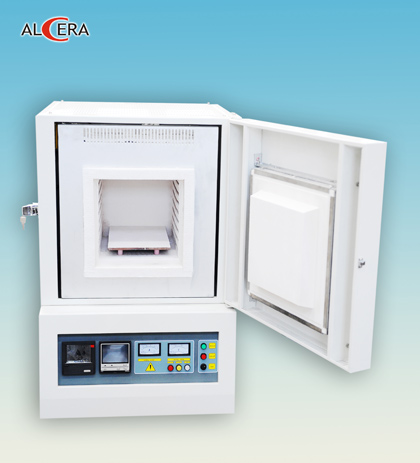

- Product Display -
