Exhaust Gas Purification Furnace
- Product Introduction -
Summary

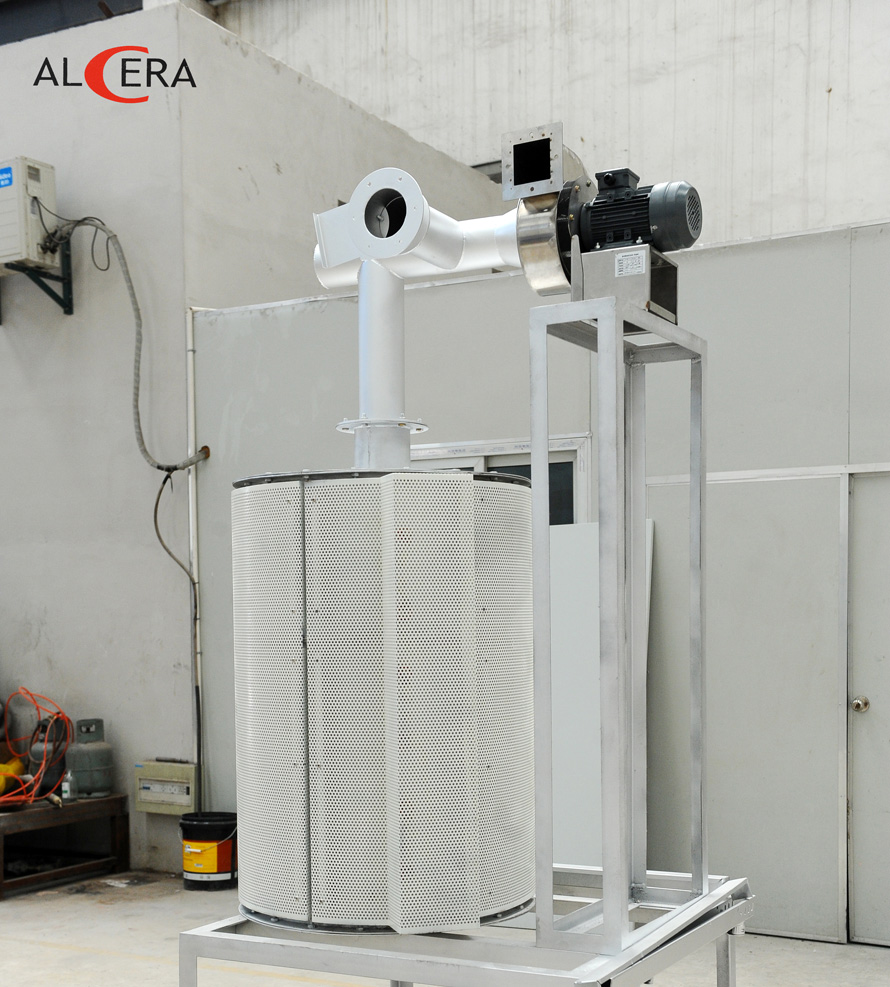

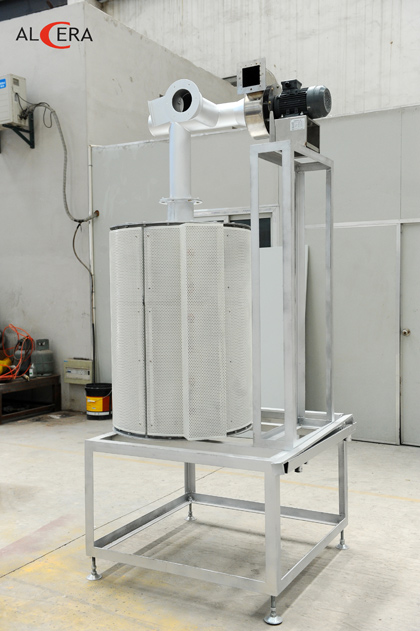

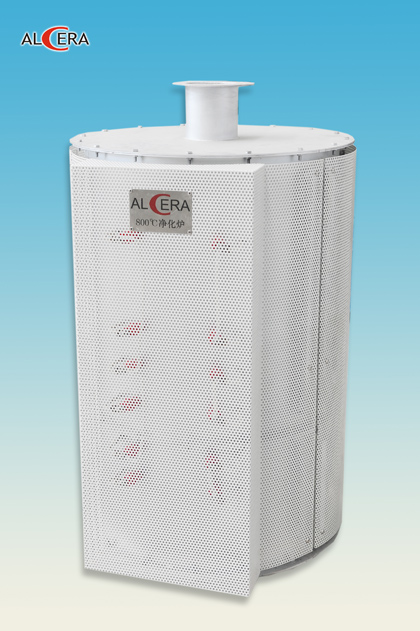

SK series exhaust gas purification furnace is mainly used for flue for smokeless and odorless treatment. It uses electric heating wire, ceramic fiber materials for heat preservation. Place porous ceramics to enlarge the contact surface 20-100times, efficiently and rapidly decompose the VOC gas. It is widely used in the degreasing process of ceramics, refractory materials to do smokeless and odorless treatment for organic binder.
- Technical Parameter -
| No. | Item | SPEC | Remark |
| 1 | Product Model | SK-08-φ4088; |
|
| 2 | Rated Voltage | 380V，3 Phase，50Hz |
|
| 3 | Rated Power | 15kW |
|
| 4 | Rated Temperature | 1000℃ |
|
| 5 | Common used temperature | 750℃ |
|
| 6 | Temp.Precision | ±3℃ |
|
| 7 | Heating Rate | Max：800℃/hr | Heating can be set by user |
| 8 | Structure | Assembled |
|
| 9 | Treatment Capacity | Max：60m3/h |
|
| 10 | VOC Efficiency | ＞95% |
|
| 11 | Cooling Method | Air Cooling |
|
| 12 | Control Method | PID Control |
|
| 13 | Adjust Method | SCR Adjust |
|
| 14 | Temp. Measurement | K TYPE thermocouple |
|
| 15 | Electric Element | Schneider Series |
|
| 16 | Protect | open-phase,over current |
|
| 17 | Current | 14 Amps | 2.5mm2 Wire |
