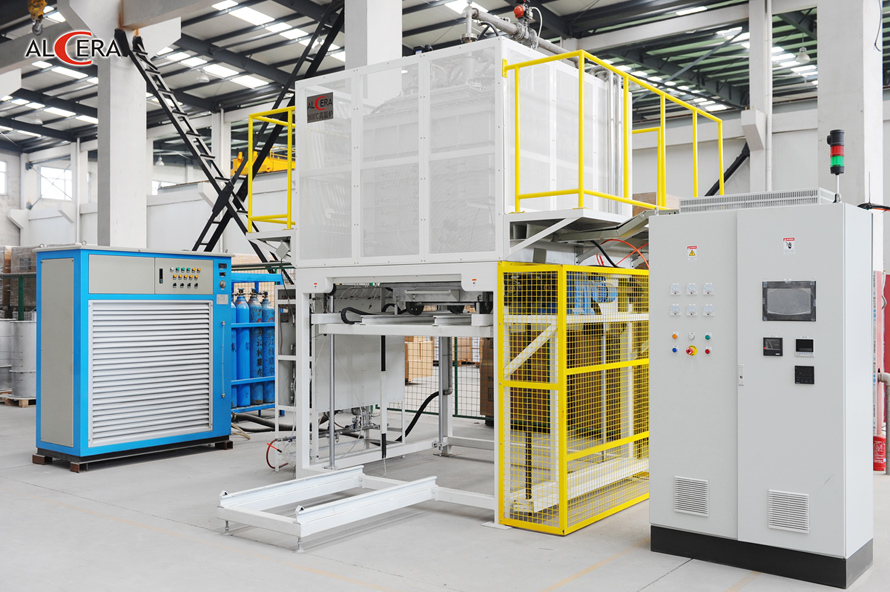

RBD series Trolley Lift High-temp Atmosphere Furnace
- Product Introduction -
Summary
The heating element is MoSi2. The working temperature is from 1500-1650℃. All the raw materials for insulation are imported from Japan. The thermal insulation layer use Micro-porous Insulation Board with low thermal conductivity. The furnace has the advantages of high working temperature, small heat storage capacity, good heat preservation, reasonable structure, good working environment anti-jamming and so on.We choose Shinko multi-segment temperature controller with 100 steps programmable curve, automatic heating/cooling. You can modify the temperature control parameters and procedures in running. Flexible operate, easy to use. Applied for the Oxygen protection, nitrogen protection, hydrogen and nitrogen protection atmosphere furnace.
Temperature.Precision ±1℃, temperature uniformity±10℃. Heating fast, the fastest heating rate≤5℃/min. Widely used in electronic ceramics, powder metallurgy, machinery, building materials, refractories, special materials, new materials development and other fields.
- Technical Parameter -
| Product Model | RBDQ-606060 |
| Working Temperature | 1600℃ |
| Rated Voltage | 380V±10%,50Hz±5% |
| Rated Power | 92kw |
| Temp. Uniformity | In the uniform temperature area 500 *500* 500, 1600 ℃ ± 10 ℃ |
| Temp.Precision | ±1℃ |
| Insulation Material | Imported Ceramic fiber |
| Temp. Measurement | B type thermocouple |
| Heating Element | MoSi2 |
| Safety Device | over current, over temperature protection |
| Control Method | SCR control / PID temperature control |
| Heating Mode | Programmable control (100 step program, 10 groups of PID parameters) |
| Heating Rate | 0-1600℃/4hr |
| Service Environment | Air, oxygen or nitrogen |
| Effective Dimension | 600*600*600 |
| L×W×H（mm) |
