To open tubular furnace
- Product Introduction -
Summary

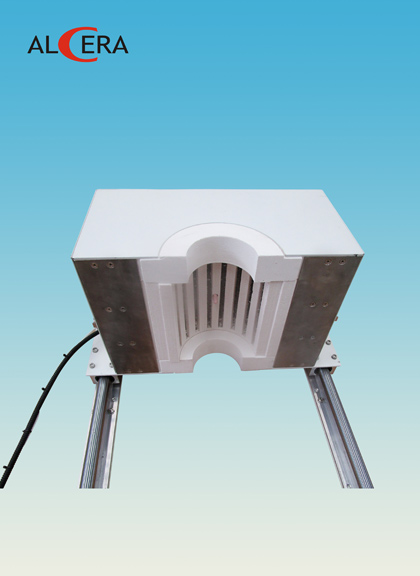

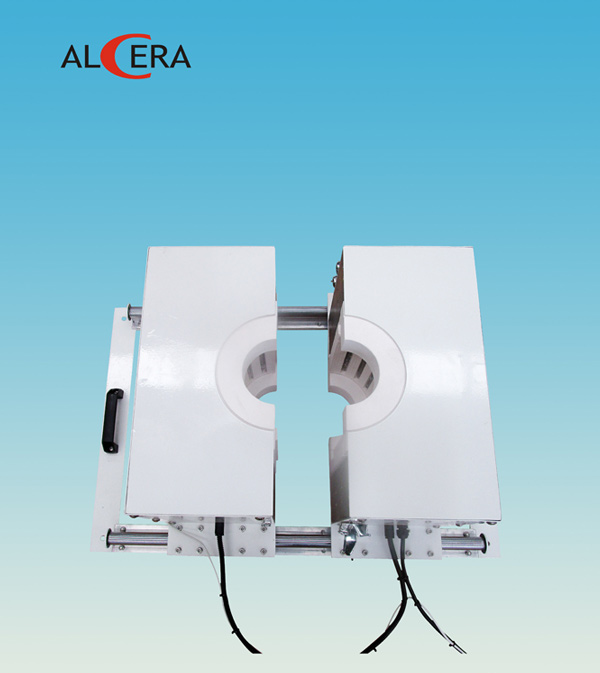

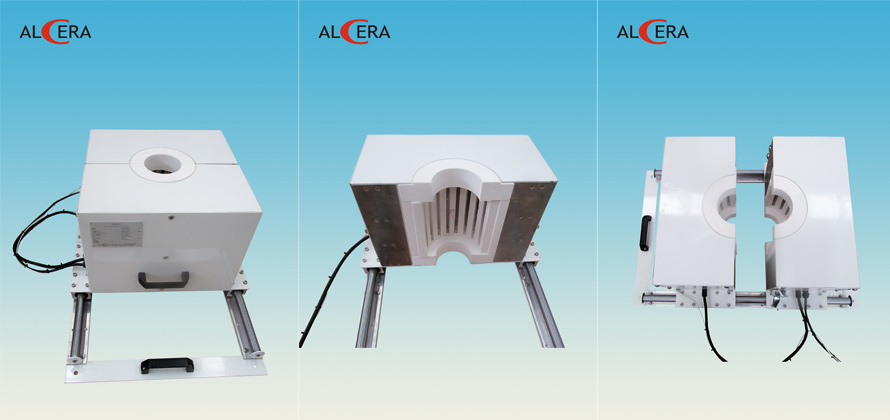

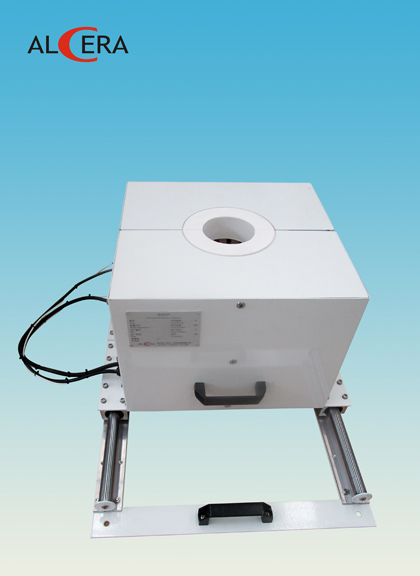

ALCERA SK12 series split vertical tube furnace is a new type product independent developed by ALCERA according to customers’ requirements. It adopts a integrated electric furnace as heating source, one area temperature control, K type thermocouple for temperature measurement.
This type tube furnace is suitable for experiments or small batch production, with the characteristics of easy to operate, high precision of temperature control, good effect of heat preservation , large temperature range, high temperature uniformity, etc.
- Technical Parameter -
| Long-term working temperature | 1000 ℃ |
| The highest working temperature | 1150 ℃ |
| Uniform temperature zone length | 200 mm, diameter 10 mm |
| Temperature uniformity | ±3 ℃ |
| Electrical parameters | 220v, 2 kw |
- Contact Us -
|
Tel:+86-512-63496667-162 Fax:+86-512-63496217 QQ:3262838371 Email:alcera@alcera.cn Wechat:alcera Website:www.alcera.cn Postcode:215200 Add: No.8 Yexin Rd, Wujiang Economic and Technology Development Zone, Jungian, PRC |
ALCERA (SUZHOU) CO., LTD
purchase：To open tubular furnace
- *Name：
- *Phone：
- company name：
- *Email：
- *Intent to purchase：
-
*Verification code：
