Zinc Melting Heating Furnace
- Product Introduction -
Summary
Zinc Melting Heating Furnace is the key equipment for the small galvanized steel strip production line. The furnace performance of safety, reliability, stability will seriously affect the quality and production capacity of the galvanized steel.
- Technical Parameter -
| Name | Technical Parameters |
| Rated Voltage | AC 440 V±10% 3相 60 Hz±5% |
| Rated Capacitance | 16.4 T |
| Highest Working Temperature | 500 ℃ |
| Heating Element | KANTHAL AF |
| Rated Power | 180 kW |
| Connection Way | Y Type |
| Heating Location | 4 side wall, bottom surface |
| Control Method | PID Control |
| Operation Method | Touch Screen |
| Insulation Material | Side wall:CF Module + Micro-porous Insulation |
| Board; Bottom:Brick | |
| Safety Protection | Over temperature, short circuit, leakage |

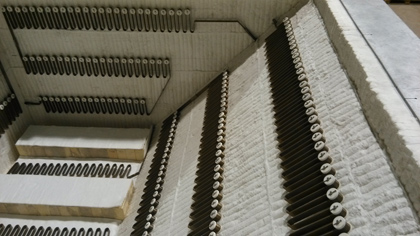

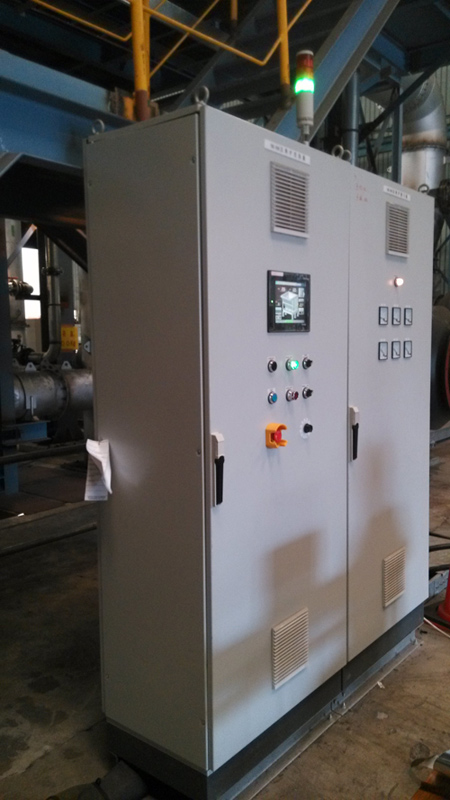

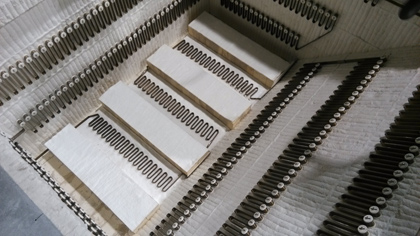

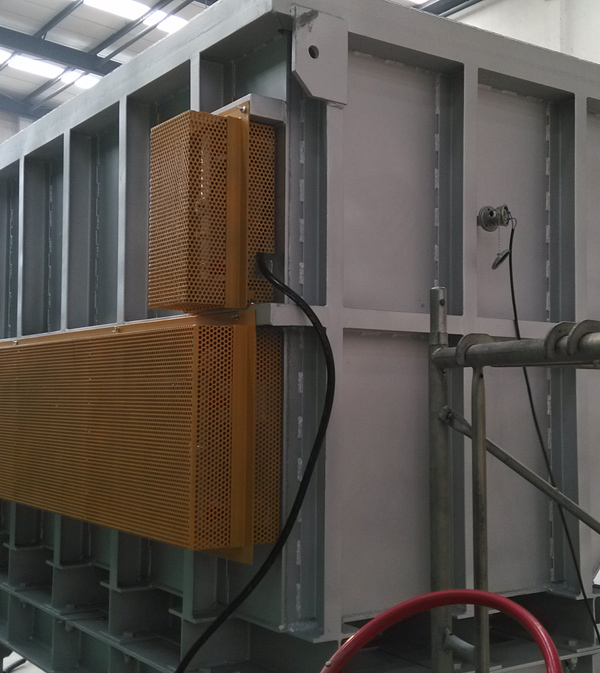

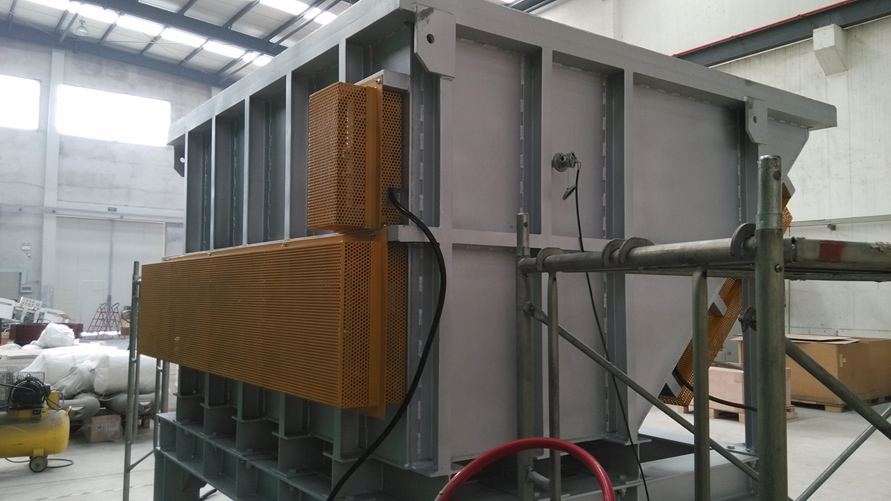

- Product Display -
